উৎপত্তি স্থল:
চীন
পরিচিতিমুলক নাম:
carterberg
সাক্ষ্যদান:
IATF16949
মডেল নম্বার:
সিবি-এম
CB-YM Coal Mine Quick Couplings are high-strength, chrome-plated carbon steel connectors designed for harsh mining environments. With a temperature range of -20°C to +100°C, they ensure reliable performance in extreme conditions. Available in thread sizes Dn10 to Dn31.5 (M18×1.5 to M52×2), these couplings support pressures from 15 to 28 bar, catering to diverse pipeline connections in quarrying and large-scale mining equipment. Their durable chrome plating enhances corrosion resistance, while precise threading guarantees leak-proof sealing. Ideal for hydraulic systems, pneumatic lines, and fluid transfer applications, CB-YM couplings are engineered for efficiency and longevity in industrial settings. Trusted for mining machinery, these connectors streamline maintenance and reduce downtime.

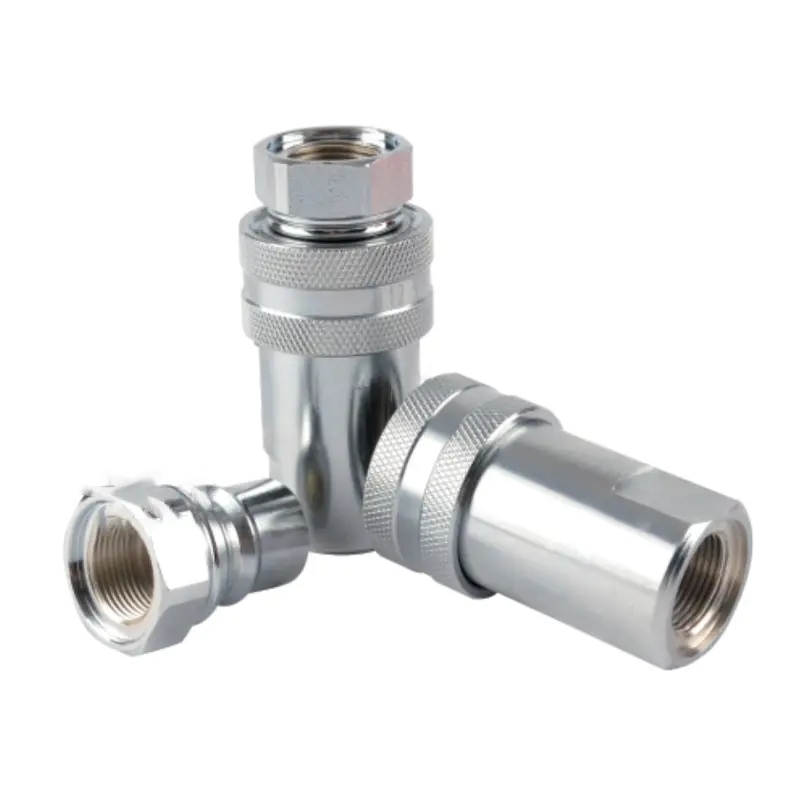

CB-YM Coal mine quick coupling
Material: Carbon Steel
Plating: Chrome Plated
Temperature Range (Nbr): -20°C + 100°C
Thread Size: Dn10 Dn12.5 Dn20 Dn25 Dn31.5
Thread: M18*1.5 M22*1.5 M27*2 M33*2 M52*2
Pressure: 28 26 21 20 15
Application Range: Various Pipeline Connections Such As Mining Equipment.CB-YM quarry large mine and other equipment.
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 3/8" | 4000 | 6 | -20℃~+100℃ | NBR |
| 1/2" | 3000 | 12 | -20℃~+100℃ | NBR |
Female (Socket)
| Body Size | PARTNO. | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T |
| 3/8" | CB-SP3S-TNV | 82 | 50.5 | 49 | 18.5 | 30.5 | 12.8 | 25.4 | 25.4 | G3/8 NPT3/8 |
| 1/2" | CB-SP4S-TNV | 94 | 57 | 54.5 | 18.5 | 35 | 16 | 30.2 | 30.2 | G1/2 NPT1/2 |
